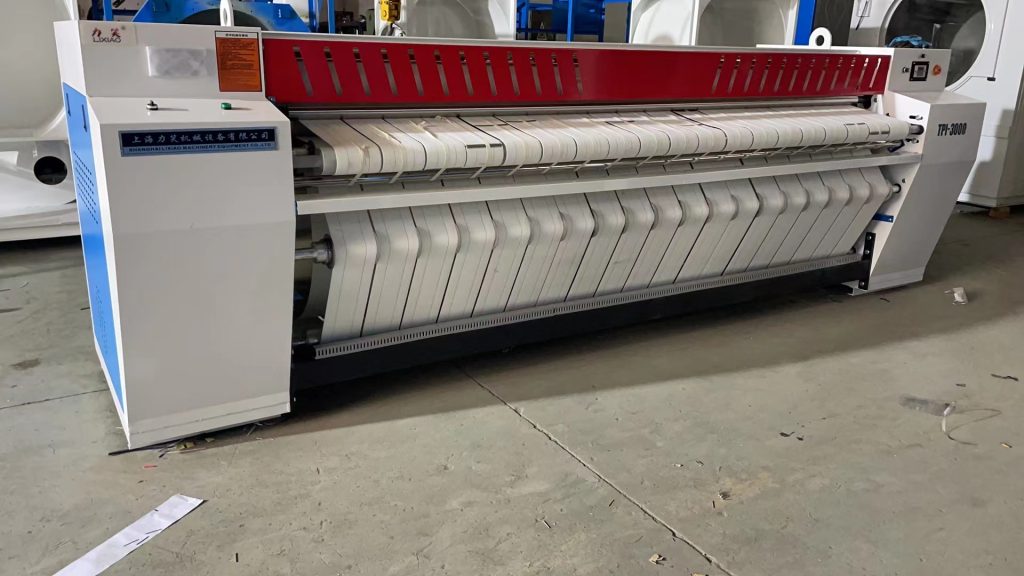

Flatwork Ioner
1)electric /steam /gas heating, drive with speed adjustment, adjustable speed according to the heating temperature and fabric thickness;
2) 800mm large diameter rollers made of stainless steel, the surface grinding process, the fabric wear is minimized; 10mm thickness of the main roller.
3) reliable operation, the use of pulleys and sprocket reducer connection, and configuring the drive engine mechanism to ensure the smooth operation;
4)Any auxiliary roller spray zinc processing, high corrosion resistance and durability.

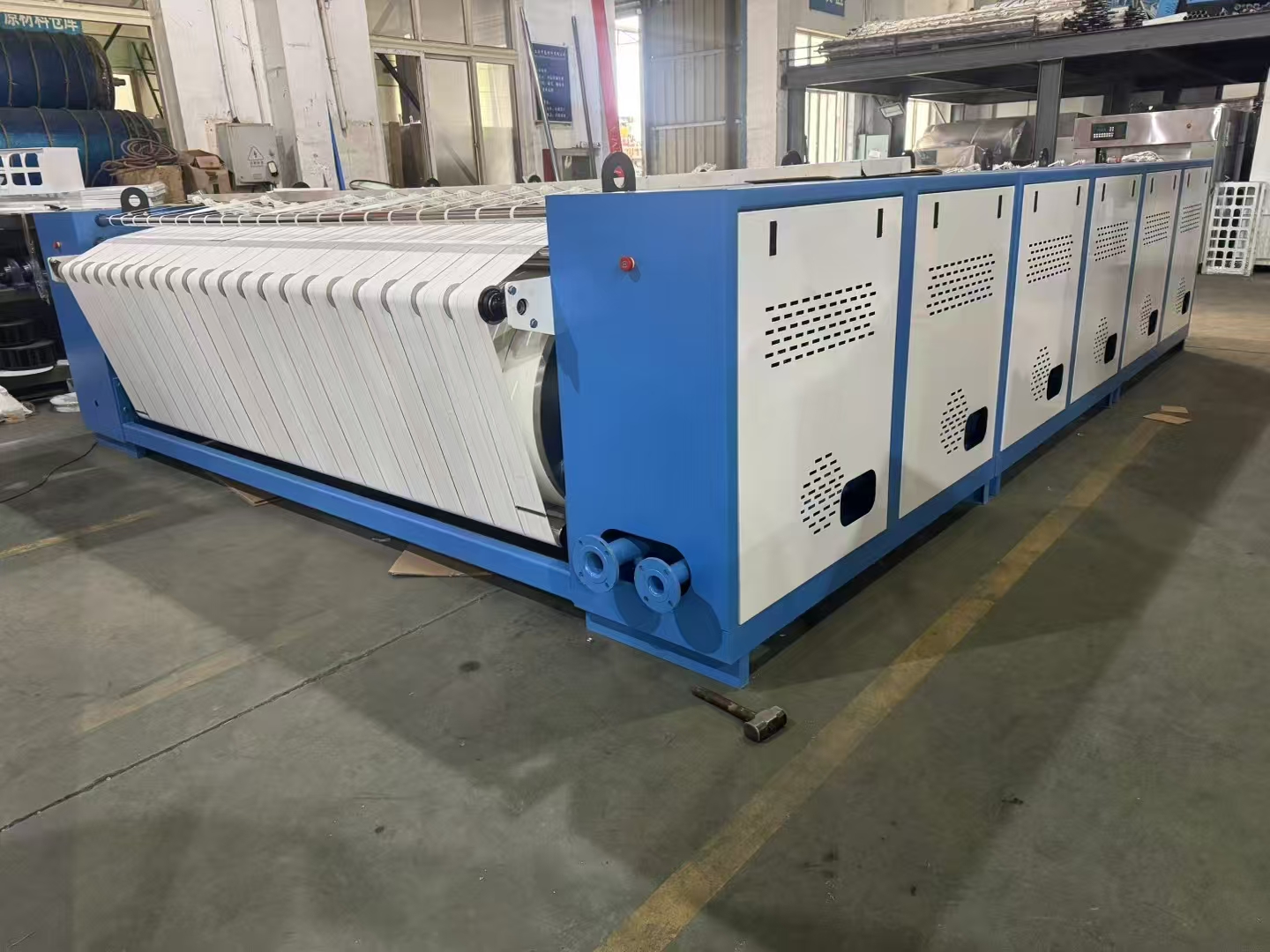

| Laundry Flatwork Ironer– Steam heating/Gas heating 6rollers |
| |
Model |
unit |
TPVI-3000 |
TPVI-3300 |
|
|
| 最大熨平宽度 |
Max Ironing Smooth Width |
mm |
3000 |
3300 |
|
|
| 熨平数度 |
Ironing Speed |
m/min |
0-6 |
0-6 |
|
|
| 最高加热温度 |
Max Heating Temperature |
℃ |
158 |
158 |
|
|
| 蒸汽压力 |
Steam Presure |
Mpa |
0.4-0.6 |
0.4-0.6 |
|
|
| 蒸汽耗量 |
Steam Consumption |
kg |
600 |
600 |
|
|
| 燃气压力 |
gas pressure |
kpa |
around 5 |
around 5 |
|
|
| 燃气耗量 |
gas consumption |
m³ |
6–8*4 |
6–8*6 |
|
|
| 电机功率 |
Motor Power |
kw |
2.2 |
2.2 |
|
|
| 额定电压 |
Rated Voltage |
V/PHASE/HZ |
380/3/50 |
380/3/50 |
|
|
| 外形（长*宽*高） |
Dimension(L.W.H) |
w*d*h/mm |
4200*4400*1400 |
4400*4400*1400 |
|
|
| 整机重量 |
Total Weight |
kg |
7700 |
8200 |
|
|
| 蒸汽烫平机1 laundry flatwork ironer– Steam heating 1 roller |
| |
Model |
unit |
TP-2200 |
TP-2500 |
TP-2800 |
TP-3000 |
TP-3300 |
| 最大熨平宽度 |
Max Ironing Smooth Width |
mm |
2200 |
2500 |
2800 |
3000 |
3300 |
| 熨平数度 |
Ironing Speed |
m/min |
0-6 |
0-6 |
0-6 |
0-6 |
0-6 |
| 最高加热温度 |
Max Heating Temperature |
℃ |
158 |
158 |
158 |
158 |
158 |
| 蒸汽压力 |
Steam Presure |
Mpa |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| 蒸汽耗量 |
Steam Consumption |
kg |
100 |
120 |
140 |
155 |
170 |
| 电机功率 |
Motor Power |
kw |
0.75 |
0.75 |
0.75 |
0.75 |
0.75 |
| 额定电压 |
Rated Voltage |
V |
380 |
380 |
380 |
380 |
380 |
| 外形（长*宽*高） |
Dimension(L.W.H) |
w*d*h/mm |
3400*1250*1250 |
3800*1250*1250 |
4000*1250*1250 |
4200*1250*1250 |
4400*1250*1250 |
| 整机重量 |
Total Weight |
kg |
1300 |
1350 |
1450 |
1500 |
1600 |
| 蒸汽烫平机2 Laundry Flatwork Ironer– Steam heating 2 rollers |
| |
Model |
unit |
TPII-2500 |
TPII-2800 |
TPII-3000 |
TPII-3300 |
| 最大熨平宽度 |
Max Ironing Smooth Width |
mm |
2500 |
2800 |
3000 |
3300 |
| 熨平数度 |
Ironing Speed |
m/min |
0-6 |
0-6 |
0-6 |
0-6 |
| 最高加热温度 |
Max Heating Temperature |
℃ |
158 |
158 |
158 |
158 |
| 蒸汽压力 |
Steam Presure |
Mpa |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| 蒸汽耗量 |
Steam Consumption |
kg |
200 |
250 |
380 |
300 |
| 电机功率 |
Motor Power |
kw |
2.2 |
2.2 |
2.2 |
2.2 |
| 额定电压 |
Rated Voltage |
V |
380 |
380 |
380 |
380 |
| 外形（长*宽*高） |
Dimension(L.W.H) |
w*d*h/mm |
3700*2150*1385 |
4000*2150*1385 |
4200*2150*1385 |
4400*2150*1385 |
| 整机重量 |
Total Weight |
kg |
2700 |
2800 |
3000 |
3000 |
| 蒸汽烫平机3 Laundry Flatwork Ironer– Steam heating 4 rollers |
| |
Model |
unit |
TPIV-2500 |
TPIV-2800 |
TPIV-3000 |
TPIV-3300 |
| 最大熨平宽度 |
Max Ironing Smooth Width |
mm |
2500 |
2800 |
3000 |
3300 |
| 熨平数度 |
Ironing Speed |
m/min |
0-6 |
0-6 |
0-6 |
0-6 |
| 最高加热温度 |
Max Heating Temperature |
℃ |
158 |
158 |
158 |
158 |
| 蒸汽压力 |
Steam Presure |
Mpa |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
0.4-0.6 |
| 蒸汽耗量 |
Steam Consumption |
kg |
300 |
350 |
380 |
400 |
| 电机功率 |
Motor Power |
kw |
2.2 |
2.2 |
2.2 |
2.2 |
| 额定电压 |
Rated Voltage |
V |
380 |
380 |
380 |
380 |
| 外形（长*宽*高） |
Dimension(L.W.H) |
w*d*h/mm |
3700*3100*1385 |
4000*3100*1385 |
4200*3100*1385 |
4400*3200*1400 |
| 整机重量 |
Total Weight |
kg |
3300 |
3500 |
3800 |
4000 |
